The Sweet Learning Computer: Learning Ladder

The board for the ladder game with the piece on the bottom rung
The Ladder board. Image by Paul Curzon

Can a machine learn from its mistakes, until it plays a game perfectly, just by following rules? Donald Michie worked out a way in the 1960s. He made a machine out of matchboxes and beads called MENACE that did just that. Our version plays the game Ladder and is made of cups and sweets. Punish the machine when it loses by eating its sweets!

Let’s play the game, Ladder. It is played on a board like a ladder with a single piece (an X) placed on the bottom rung of the ladder. Players take it in turns to make a move, either 1, 2 or 3 places up the ladder. You win if you move the piece to the top of the ladder, so reach the target. We will play on a ladder with 10 rungs as on the right (but you can play on larger ladders).

To make the learning machine, you need 9 plastic cups and lots of wrapped sweets coloured red, green and purple. Spread out the sheets showing the possible board positions (see below) and place a cup on each. Put coloured sweets in each cup to match the arrows: for most positions there are red, green and purple arrows, so you put a red, green and purple sweet in those cups. Once all cups have sweets matching the arrows, your machine is ready to play (and learn).

The machine plays first. Each cup sits on a possible board position that your machine could end up in. Find the cup that matches the board position the game is in when it is its go.  Shut your eyes and take a sweet at random from that cup, placing it next to the cup. Make the move indicated by the arrow of that colour. Then the machine’s human opponent makes a move. Once they have moved the machine plays in the same way again, finding the position and taking a sweet to decide its move. Keep playing alternately like this until someone wins. If the machine ends up in a position with no sweets in that cup, then it resigns.

The possible board positions showing possible moves with coloured arrows.
The 9 board positions with arrows showing possible moves. Place a cup on each board position with sweets corresponding to the arrows. Image by Paul Curzon

If the machine loses, then eat the sweet corresponding to the last move it made. It will never make that mistake again! Win or lose, put all the other sweets back.

The initial cup for board position 8, with a red and purple sweet.
The initial cup for board position 8, with a red and purple sweet. Image by Paul Curzon

Now, play lots of games like that, punishing the machine by eating the sweet of its last move each time it loses. The machine will play badly at first. It’s just making moves at random. The more it loses, the more sweets (losing moves) you eat, so the better it gets. Eventually, it will play perfectly. No one told it how to win – it learnt from its mistakes because you ate its sweets! Gradually the sweets left encode rules of how to win.

Try slightly different rules. At the moment we just punish bad moves. You could reward all the moves that led to it by adding another sweet of the same colour too. Now the machine will be more likely to make those moves again. What other variations of rewards and punishments could you try?

Why not write a program that learns in the same way – but using data values in arrays to represent moves instead of sweets. Not so yummy!

– Paul Curzon, Queen Mary University of London

Subscribe to be notified whenever we publish a new post to the CS4FN blog.

This page is funded by EPSRC on research agreement EP/W033615/1.

QMUL CS4FN EPSRC logos

Signing Glasses

Glasses sitting on top of a mobile phone.
Image by Km Nazrul Islam from Pixabay

In a recent episode of Dr Who, The Well, Deaf actress Rose Ayling-Ellis plays a Deaf character Aliss. Aliss is a survivor of some, at first unknown, disaster that has befallen a mining colony 500,000 years in the future. The Doctor and current companion Belinda arrive with troopers. Discovering Aliss is deaf they communicate with her using a nifty futuristic gadget of the troopers that picks up everything they say and converts it into text as they speak, projected in front of them. That allows her to read what they say as they speak.

Such a gadget is not so futuristic actually (other than in a group of troopers carrying them). Dictation programs have existed for a long time and now, with faster computers and modern natural language processing techniques, they can convert speech to text in real time from a variety of speakers without lots of personal training (though they still do make mistakes). Holographic displays also exist, though such a portable one as the troopers had is still a stretch. An alternative that definitely exists is that augmented reality glasses specifically designed for the deaf could be worn (though are still expensive). A deaf or hard of hearing person who owns a pair can read what is spoken through their glasses in real time as a person speaks to them, with the computing power provided by their smart phone, for example. It could also be displayed so that it appeared to be out in the world (not on the lenses), as though it were appearing next to the person speaking. The effect would be pretty much the same as in the programme, but without the troopers having had to bring gadgets of their own, just Aliss wearing glasses.

Aliss (and Rose) used British Sign Language of course, and she and the Doctor were communicating directly using it, so one might have hoped that by 500, 000 years in the future someone might have had the idea of projecting sign language rather than text. After all, British SIgn Language it is a language in its own right that has a different grammatical structure to English. It is therefore likely that it would be easier for a native BSL speaker to see sign language rather than read text in English.

Some Deaf people might also object to glasses that translate into English because it undermines their first language and so culture. However, ones that translated into sign language can do the opposite and reinforce sign language, helping people learn the language by being immersed in it (whether deaf or not). Services like this do in fact already exist, connecting Deaf people to expert Sign language interpreters who see and hear what they do, and translate for them – whether through glasses or laptops .

Of course all the above so far is about allowing Deaf people (like Aliss) fit into a non-deaf world (like that of the Troopers) allowing her to understand them. The same technology could also be used to allow everyone else fit into a Deaf world. Aliss’s signing could have been turned into text for the troopers in the same way. Similarly, augmented reality glasses, connected to a computer vision system, could translate sign language into English allowing non-deaf people wearing glasses to understand people who are signing..

So its not just Deaf people who should be wearing sign language translation glasses. Perhaps one day we all will. Then we would be able to understand (and over time hopefully learn) sign language and actively support the culture of Deaf people ourselves, rather than just making them adapt to us.

– Paul Curzon, Queen Mary University of London

More on …

Magazines …

Front cover of CS4FN issue 29 - Diversity in Computing

Subscribe to be notified whenever we publish a new post to the CS4FN blog.

This page is funded by EPSRC on research agreement EP/W033615/1.

QMUL CS4FN EPSRC logos

Sign Language for Train Departures

BSL for CS4FN
Image by Daniel Gill

This week (5-11th May) is Deaf Awareness Week, an opportunity to celebrate d/Deaf* people, communities, and culture, and to advocate for equal access to communication and services for the d/Deaf and hard of hearing. A recent step forward is that sign language has started appearing on railway stations.

*”deaf” with a lower-case “d” refers to
audiological experience of deafness,
or those who might have become deafened
or hard of hearing in later life, so might identify
closer to the hearing community.
“Deaf” with an upper-case “D” refers
to the cultural experience of deafness, or those
who might have been born Deaf and
therefore identify with the Deaf community.
This is similar to how people might describe themselves
as “having a disability” versus “being disabled”.

If you’re like me and travel by train a lot (long time CS4FN readers will be aware of my love of railway timetabling), you may have seen these relatively new British Sign Language (BSL) screens at various railway stations.

They work by automatically converting train departure information into BSL by stitching together pre-recorded videos of BSL signs. Pretty cool stuff!

When I first saw these, though, there was one small thing that piqued my interest – if d/Deaf people can see the screen, why not just read the text? I was sure it wasn’t an oversight: Network Rail and train operators worked closely with d/Deaf charities and communities when designing the system: so being a researcher in training, I decided to look into it.

A train information screen with sign language
Image by Daniel Gill

It turns out that the answer has various lines of reasoning.

There’s been many years of research investigating reading comprehension for d/Deaf people compared to their hearing peers. A cohort of d/Deaf children, in a 2015 paper, had significantly weaker reading comprehension skills than both hearing children of the same chronological and reading age.

Although this gap does seem to close with age, some d/Deaf people may be far more comfortable and skilful using BSL to communicate and receive information. It should be emphasised that BSL is considered a separate language and is structured very differently to spoken and written English. As an example, take the statement:

“I’m on holiday next month.”

In BSL, you put the time first, followed by topic and then comment, so you’d end up with:

“next month – holiday – me”

As one could imagine, trying to read English (a second language for many d/Deaf people) with its wildly different sentence structure could be a challenge… especially as you’re rushing through the station looking for the correct platform for your train!

Sometimes, as computer scientists, we’re encouraged to remove redundancies and make our systems simpler and easy-to-use. But something that appears redundant to one person could be extremely useful to another – so as we go on to create tools and applications, we need to make sure that all target users are involved in the design process.

– Daniel Gill, Queen Mary University of London

More on…

Magazines …

Front cover of CS4FN issue 29 - Diversity in Computing

Subscribe to be notified whenever we publish a new post to the CS4FN blog.

This page is funded by EPSRC on research agreement EP/W033615/1.

QMUL CS4FN EPSRC logos

Was the first computer a ‘Bombe’?

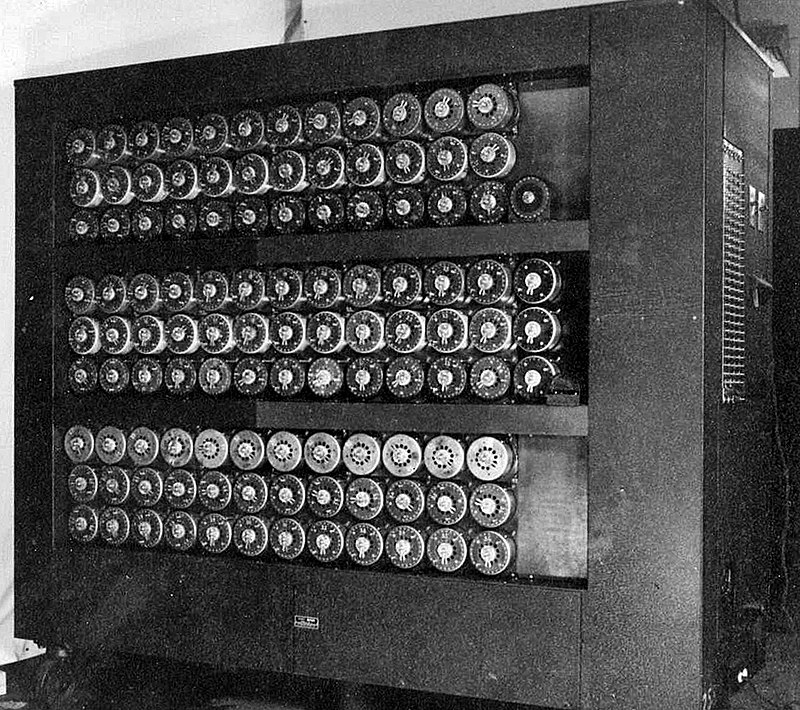

Image from a set of wartime photos of GC&CS at Bletchley Park, Public domain, via Wikimedia Commons
